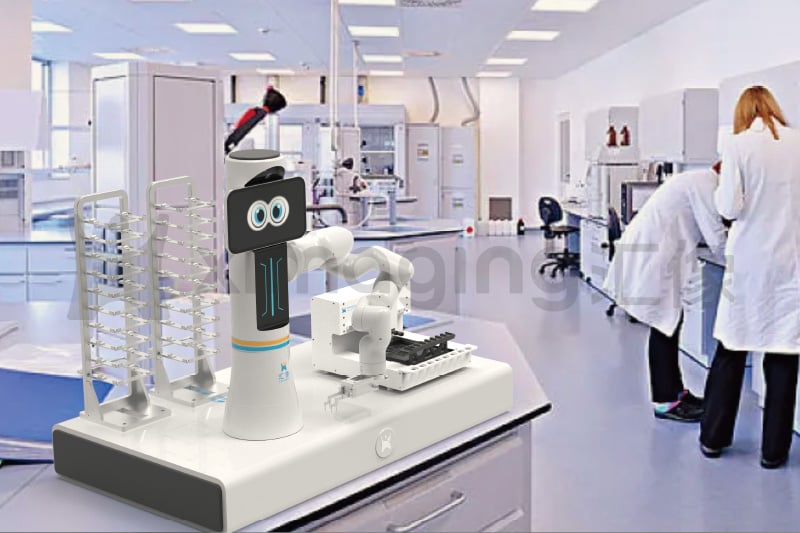

"Intelligent Spirit" fixed collaborative robot HelenX7 serves as a desk-type automated solution. It can quickly interface with various instruments,efficiently handling samples to different instruments.With excellent work efficiency and consistency, the robot can replace the repetitive and tiresome manual operations.Combined with a high-throughput plate rack, it achieves automated unattended operation for long time,which significantly shortens lab RD cycle in the laboratory, reduces costs and improves work efficiency.
Considering the limited space and multiple actions at laboratories,the robots are designed strategically from joint end cap,grippers to software based on collaborative requirements of 'grab,transfer,place and sample run',which is tailered to scientific labs.Two robot families for you to choose from,fixed collaborative robot and mobile collaborative robot,which fit different work scope,effective load and application scenarios.
| Place of Origin: | China |
| Brand Name: | Ximaging |
| Model Number: | HelenX7 |
| Certification: | CE,UL |
SMART SCIENTIFIC OPERATION SYSTEM

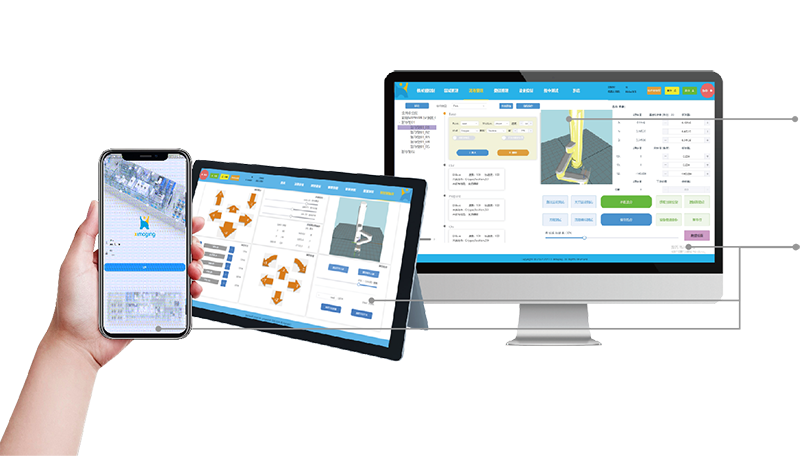

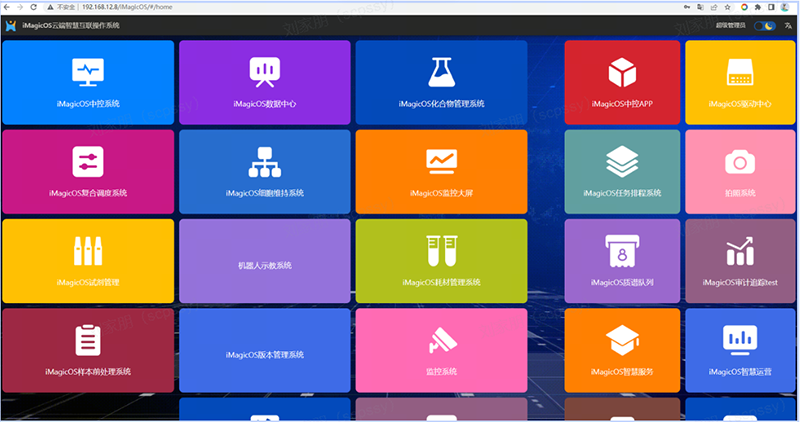

The graphical interface design allows users to easily create experiment methods by drag and drop.Start them with just one click,simple and user-friendly.Powerful functions,enabling precise control of every position of the robot. It supports crossed platform and multiple terminals, like PCs, pads, and mobile phones.
| Degree of freedom | 7 |
| Action Scope | J1:+/-180°rotate,J2:+/-360°rotate,J3:+/-125°rotateJ4:+/-130°rotate,J5:+/-360°rotate,J6:+/-120°rotateJ7:+/-360°rotate |
| Maximum armspread | 580mm |
| Maximum load | 1kg |
| Repeatability | +/-0.05mm |
| Weight | 20kg |
| Work speed | 1.5m/s |
| Work environment Temperature | 0-50℃ |
| Average power | 150W |
| Work environment humidity | 90%Relative humidity (non-condensing) |
| Power supply | 100-240VAC,50-60Hz |

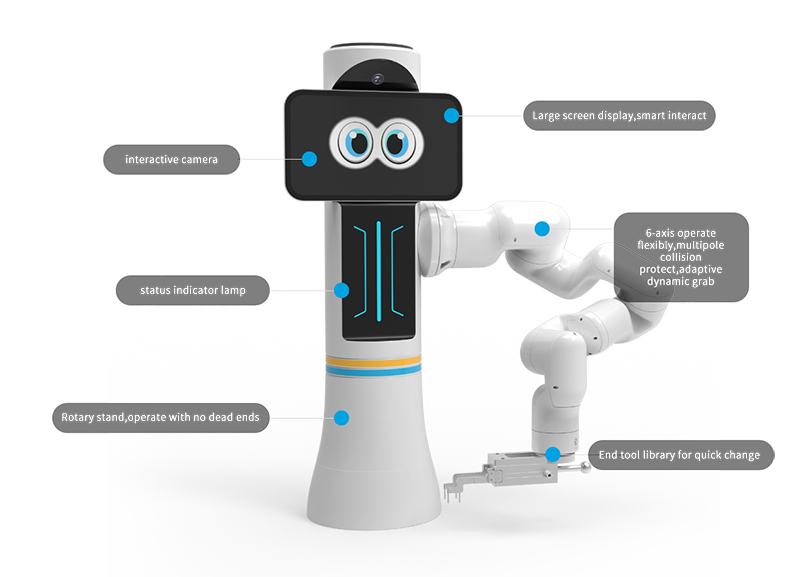

Highly compatible
Compatile for different vessels,adaptive to many experiemnt scenarios,flexibly.
Specially designed for labs
Space-saving,flexible with no dead ends,tailored to complex and compact space at labs.
Safe Collaboration
Collision protection and intelligent obstacle avoidance,fit complex human-robot collaboration scenarios.
Intelligent Interaction

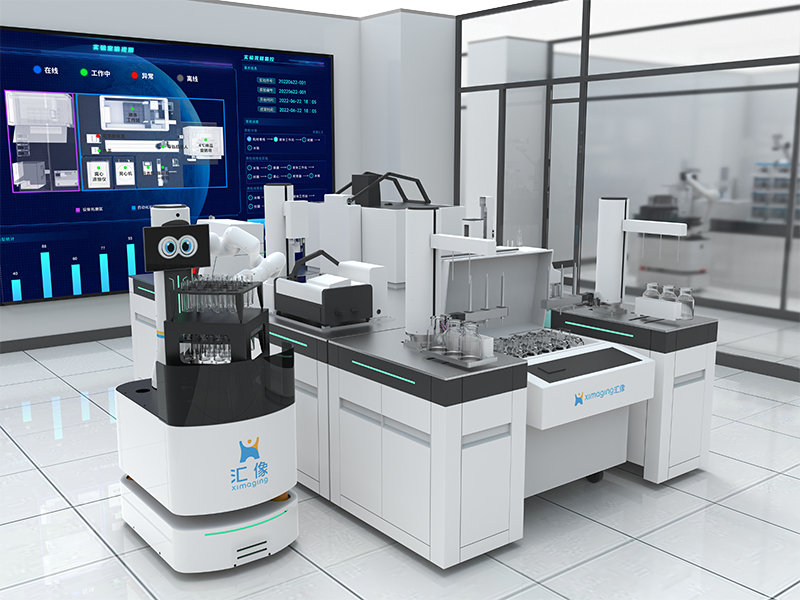

Interactive functions with a large screen,voice and face recognition.
Full experimental execution modules
A wide variety of end tools for pipetting, grasping, and scanning,fast tool changing and flexible handing of various consumables.
Reduce cost to increase benefits
Operates continuously for 24 hours, performing tasks more precisely and efficiently.
SMART SCIENTIFIC OPERATION SYSTEM
The graphical interface design allows users to easily create experiment methods by drag and drop.Start them with just one click,simple and user-friendly.Powerful functions,enabling precise control of every position of the robot. It supports crossed platform and multiple terminals, like PCs, pads, and mobile phones.

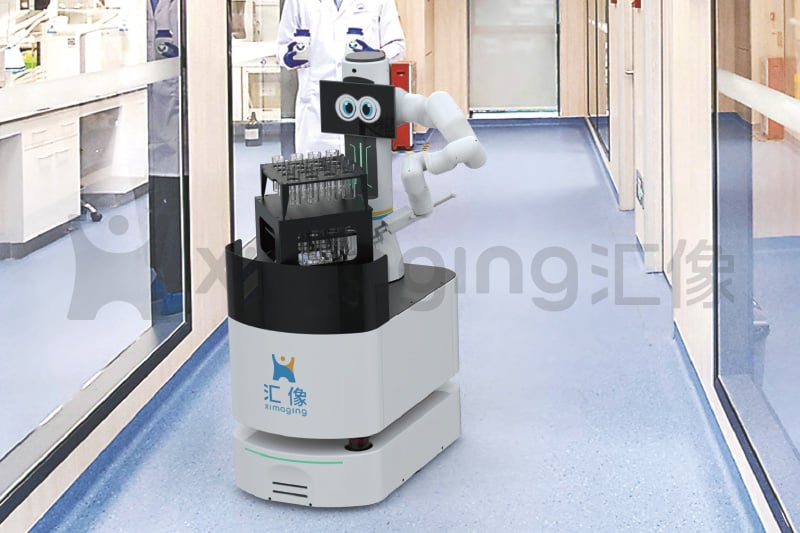

Adopted for chemical,analysis,testing and biological application scenarios,powering experiments where high accuracy and lightweight assembly.
